TRACKS

All our Tracks are made to measure on site and fitted by experts. With corded Kirsch regular or heavy duty steel tracks. Bay window specialists. We also hang and dress curtains to show room standards.

We cover London, Surrey, Berkshire, Kent, Sussex, Coventry, Birmingham, Solihull, Nuneaton, Royal Leamington Spa, Kenilworth, Bedworth, Longford, Stratford upon Avon, Sutton Coldfield, Tamworth, Northfield, Rugby, Erdington, Dudley, Wolverhampton, Kidderminster, Stourbridge, West Midlands, Warwickshire, Warwick.

Free Estimates and Advice, or Order now:

Office: 0845 468 4122
Mobile: 07956 332 838
mail@ontrack.uk.com

Please see below for more informtion about the different tracks available.

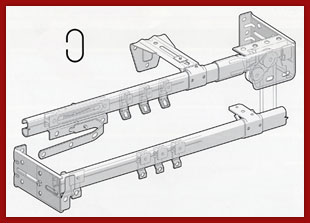

Regular Track Profile

Regular tracks are designed specifically for the majority of installations where medium to heavy weight fabrics are used. Regular tracks provide a strong rail profile with a slim appearance. This track can be fitted to meet most widths or shapes of window with bends and can be mounted on the wall or soffit.

Regular Track Profile Regular Track Profile Parts

Technical Information

MATERIAL Steel
FINISH White
CURTAINS Medium/Heavy domestic curtains
MOUNTING Wall/Soffit
TRACK ASSEMBLY Uncorded one way, Two way corded and Multiple draws possible
NOTES Bendable
MAX RAIL LENGTH

1 WAY DRAW
2 WAY DRAW
6.71m (22')
9.75m (32')
MAX FABRIC WEIGHT

1 WAY DRAW
2 WAY DRAW
11.5 kg (25lb)
16 kg (35lb)
INTERMEDIATE
SUPPORT SPACINGS
1 support 406mm (16") from end bracket and 813mm (32") apart over remainder of rail. When joining rails one support is required at the splice.
BRACKET & SUPPORT
EXTENSIONS
3.75-6.25cm (1.5"-2.5")
6.25-8.75cm (2.5"-3.5")

Top

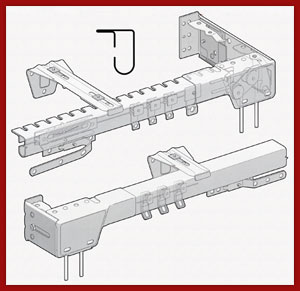

Double Duty Track Profile

The Double Duty track is designed to maintain a smooth and effective operation with even the heaviest of fabrics, it is manufactured from steel with the unobtrusive but robust design catering for all types of installations.

Double Duty Track Profile Double Duty Track Profile Parts

Technical Information

MATERIAL Steel
FINISH White
CURTAINS Heavy
MOUNTING Wall/Soffit
TRACK ASSEMBLY Uncorded one way, Two way corded and Multiple draws possible
NOTES Double duty pre-notched, can be bent
MAX RAIL LENGTH

1 WAY DRAW
2 WAY DRAW
7.31m (24')
9.75m (32')
MAX FABRIC WEIGHT

1 WAY DRAW
2 WAY DRAW
13.5 kg (30lb)
20 kg (44lb)
INTERMEDIATE
SUPPORT SPACINGS
1 support 406mm (16") from end bracket and 813mm (32") apart over remainder of rail. When joining rails one support is required at the splice.
BRACKET & SUPPORT
EXTENSIONS
3.75-6.25cm (1.5"-2.5") 6.25-8.75cm (2.5"-3.5")
3.75-14cm (1.5"-5.5") for Double rods

Top

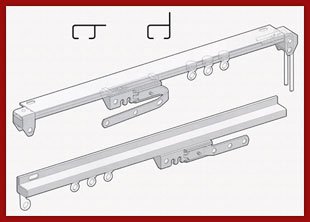

Slimglide/Discreet Track Profile

Slimglide/Discreet Track Profile

Technical Information

MATERIAL Aluminium
FINISH Silver Anodised (Slimglide) White (Discreet)
CURTAINS Light/Medium
MOUNTING Face Fix - Wall, Top Fix - Soffit
TRACK ASSEMBLY Uncorded one way, Two way
NOTES No brackets required
MAX RAIL LENGTH

1 WAY DRAW
2 WAY DRAW
4.88m (16')
9.75m (32')
MAX FABRIC WEIGHT

CORDED 1 WAY DRAW
UNCORDED 1 WAY DRAW
CORDED 2 WAY DRAW
UNCORDED 2 WAY DRAW
11.5 kg (25lb)
22 kg (48lb)
16kg (35lb)
44kg (96lb)

Top

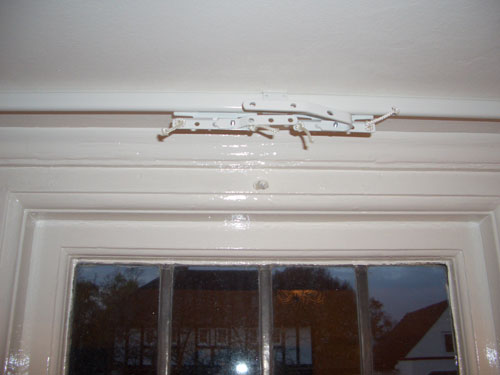

Below are some examples of Tracks at various stages of being fitted, for finished examples please view the Gallery page.
